Dsmx Transmitter

Eachine SP09X 2.4G Compatible DSM2 DSMX Satellite Receiver for Aurora 68 Mini FPV Racing Drone Specification: Brand name: Eachine Item name: Compatible DSM2/ DSMX satellite Receiver Model: SP09X Frequency range: 2.403-2.479Ghz Input power: 5V Response time: 22ms / 11MS Resolution: 2048 Weight: 1.2 g Protoco: DSM2/DSMX Compatible Transmitters: DSM2 / DSMX series of remote control Usage: for Aurora 68 Mini Racing Drone Package Included: 1x DSM2/ DSMX Receiver

Redcon 2.4G Satellite Receiver With Code Key For DSM2 DSMX JR Spektrum Transmitter Description: Brand Name: Redcon Item Name: 2.4G Satellite Receiver Weight: About 6g( receiver board only 4g, the shell can be removed easily) Dimension: 25.7x28.5x6.7mm Input Voltage: 3.3V Modulation: for DSM2/DSMX Usage: Suitable for JR Spektrum transmitter This receiver comes with code key, so you can more convenient to use it with transmitter Package Included: 1x Redcon 2.4G Satellite

Redcon 2.4G Satellite Receiver For DSM2 DSMX JR Spektrum transmitter Description: Brand Name: Redcon Item Name: 2.4G Satellite Receiver Weight: About 6g Dimension: 25.7x28.5x6.7mm Input Voltage: 3.3V Usage: Suitable for DSM2 DSMX JR Spektrum transmitter Note: 1) This is not a Spektrum DSM2/X product, nor is it a copy of a Spektrum DSM2/X product. The Spektrum and DSM2/X brand is a trademark of Horizon Hobbies USA. 2) This is not an underground black market fake Spektrum product. Package Included: 1x Redcon 2.4G Satellite Receiver

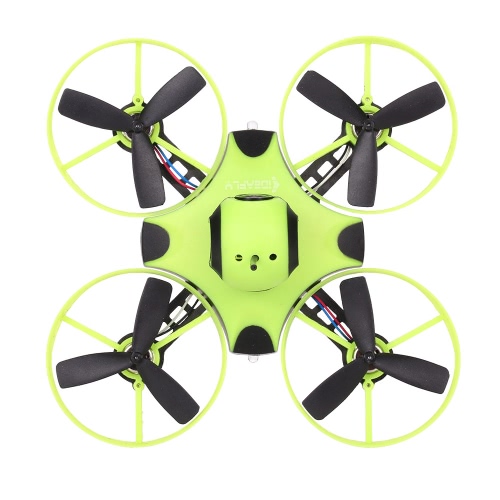

authentic / F3 flight controller / KV7500 brushless motor / 600TVL CMOS camera / 5.8G 25mW 48CH transmitter

F3 flight controller / 600TVL camera / 716 coreless motor / 5.8G 40CH 25mW video transmitter / OSD function

authentic / F3 flight controller / 700TVL camera / 1104 7500KV motor / 5.8G 48CH 25mW video transmitter

F3 flight controller / 600TVL camera / 716 coreless motor / 5.8G 40CH 25mW video transmitter / OSD function

Eachine Minicube DSM2 DSMX Satellite 2.4G Receiver 20mm*20mm Built-in Buzzer Description: Brand name: Eachine Item name: Minicube DSM2/ DSMX satellite Receiver Frequency range: 2.403-2.479Ghz Input power: 5V Response time: 22ms / 11MS Resolution: 2048 Display method: LED Operating voltage: 3.3V Working current: 60MA Size: 27mm*27mm*7mm Mount hole:20mm*20mm Weight: 3.1 g Antenna length: 100mm Data format: Serial port Protoco: DSM2/DSMX Distance: no ground interference (1 m from the ground ) > 300m Uses: indoor small aircraft. Compatible Transmitters: DSM2 / DSMX series of remote control Built-in Buzzer (Low voltage alarm) Configure by Betaflight configurator Minicube DSM2 DSMX Compatible Satellite receiver manual Package included: 1 x Eachine Minicube DSM2/ DSMX satellite Receiver

Only 0.8g 2.4G Compatible DSM2 DSMX Receiver for JR SPECTRUM Transmitter Specification: Item name: DSM2 DSMX receiver Voltage: 3.3-5V Modulation: DSM2/DSMX (Automatic search mode) Channel: 2.4GHz, 8CH Control range: 500m+ Dimension: 12*13mm Weight: about 0.8g Features: -compatible with JR and SPECTRUM DSM2/DSMX transmitter or Launch module -very light, about 0.8g(included the antenna) -compatible with NAZA32 F3, F4, etc. Binding procedure: Notes: when binding, don't connect the battery. I. The receiver is used for Cleanflight and Betaflight firmware, input in the CLI command line. II. "set spektrum_sat_bind=9" pressing enter key III. then input "save" pressing enter key IV. Disconnect the USB cable, re-power to the flight control. Receiver LED quick flash then orange LED keep light it means bind is in the waiting mode. V. opening the transmitter, enter binding procedure. when orange LED keep light it means bind succeeded, otherwise, it means no signal. Package included: 1* receiver

V710 2.4G 7CH Receiver for Spektrum Storm G152 DSMX DSM2 RC Drone FPV Racing Multi Rotor Description: Item name: V710 2.4G 7CH receiver Dimensions: L 47mm x W 24mm x H 14mm Weight: about 11g Channels: 7 Band: 2.4GHz Air Antenna length: 2 x 135 mm Operating voltage: 3.5V-9.6V Features: Specially developed for Spektrum DSM2 / DSMX transmitters High-level receiver with full range 3dbi gain antenna, 18 db gain amplifier Telemetry, compatible with TM1000 For DSMX / DSM2 spectrum transmitters Package included: 1 x V710 2.4G 7CH receiver

REDCON 2.4G 6CH CM651 DSM2 DSMX Compatible Receiver With Satellite Description: Brand Name: REDCON Item Name: CM651 receiver with Satellite Band: 2.4G Channel: 6CH Material: Plastic Modulation: DSM2/DSMX Dimension: 21.6x30.1x12.3mm Weight: 10g Voltage: 3.5-9.6V Receiving Antenna Length: 30mm Features: Compatible with all the Spektrum and JR 2.4G transmitter. Compatible with DSM2/DSMX transmitter and expansion transmitter module. Compatible with Devo10 ,DX6I DX18,DX7,DX8,DX9 transmitter. General Notes: 1) This is not a Spektrum DSM2/X product, nor is it a copy of a Spektrum DSM2/X product. The Spektrum and DSM2/X brand is a trademark of Horizon Hobbies USA. 2) This is not an underground black market fake Spektrum product. 3) Only one bind procedure is required on a new receiver. Repetitive binding provides no extra security. Always remember to remove the binding harness after successful bind is completed. Package Included: 1x REDCON CM651 receiver 1x REDCON Satellite 1x Bind plug

REDCON CM703 2.4GHZ 7CH DSM2 DSMX Compatible Receiver With Satellite PPM PWM Output Description: Brand Name: REDCON Item Name: CM703 2.4GHZ 7CH DSM2 DSMX Compatible Receiver Band: 2.4GHZ Channel: 7+PPM output Operating Voltage: 3.3V-9.6V Dimensions (W x Lx H): 47 x 24x14 mm Weight: 10g (4.8g Naked) Brown-Out Voltage: 4.0v (Always supply power above this voltage) Antenna Length Main RX: 13.5cm (2) Modulation: DSM2/DSMX PPM Output: Yes (support RC multicopters) Compatible Transmitter: JR and Spektrum DSMX DSM2 transmitter Features: 6 channels with PPM Output 3dbi gain antenna,15dbi gain amplifier. Stronger anti-interference ability and farther control range. Patent pending Model Match prevents flying a model using the wrong model memory (feature does not work with module systems) Servo Sync (feature does not work with module systems) Preset failsafe system Quick Connect Compatibility (Spectrum and JR DSM2 /DSMX): DX6I,DX7,DX8, DSX7,DSX9 DSX11 General Notes: Only one time bind procedure is required on a new receiver. Repetitive binding provides no extra security. Always remember to remove the binding harness after successful bind is completed. Package Included: 1XREDCON CM703 receiver 1XREDCON Satellite

Happymodel Crazybee F3 Flight Controller UR65 US65 UK65 4 IN 1 5A 1S Blheli_S ESC Compatible DSM2/DSMX Crazybee F3 flight controller is a Ultimate version for 1S Whoop brushless racing drone, it's the world first Tiny whoop size brushless flight controller with Receiver/4in1 ESC/OSD/Current Meter all in one design, include all your needs . Now the new version for DSM2/DSMX is coming Specifications: Firmware: Betaflight_3.5.0_Crazybee MCU: STM32F303CCT6 (72MHZ, 256K FLASH) Sensor: MPU-6000(SPI connection) Power supply: 1S battery input (DC 3.5-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Serial-based Spektrum compatible DSM2/DSMX satellite receiver Built-in Betaflight OSD(SPI Controll) Built-in Current meter (Max 14A,could be modified to 28A by replace resistor) Built-in 5V 0.8A BEC with LC filter Built-in voltage detection BLHELI_S pass-through Ready Heading LED Ready Board size: 28.5 * 28.5MM Board weight: 3.5 g ESC parameters: Power supply: 1S LiPo/LiPo HV (4.2v/4.35v) Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_L_5_REV16_6.HEX Signal Support: Dshot150/Dshot300/Dshot600/Oneshot125/Multishot/PWM Receiver parameters: Serial-based Spektrum DSM2/DSMX compatible Satellite receiver DSM2/DSMX compatible Channels: 6ch~9ch(according to your transmitter) Failsafe support No ground interference ( Transmitting and receiving 1 m from the ground): 300m Package Included: 1 x Crazybee Flight Controller ESC DSM2/DSMX

Upgraded Redcon R720X 2.4G 20CH DSM2 DSMX Compatible Micro Receiver With Binding Button Description: Brand Name: Redcon Item Name: R720X Band: 2.4GHz Channel: 20CH Modulation: DSM2/DSMX Dimensions (W x Lx H): 22x15x5mm Weight: 1.3 g Color: White Input Voltage: 3.3V Antenna Length Main RX: 6cm,9cm,15cm (optional) Control Range: 1000M Wire Definition: Yellow - Positive, Black - Negative, Gray - Signal Line Compatible Flight Controller: NAZA32,CC3D,KK2,F3,Multiwii-APM,V-Bar-5.3 Compatibility (Spectrum and JR DSM2/DSMX): DX6I,DX7,DX8,DSX7,DSX9,DSX11 Features: Upgraded version,with binding button. Super mimi, Micro receiver ServoSync (feature does not work with module systems) Preset failsafe system QuickConnect English Manual, Click Here Package Included: 1x Redcon R720X receiver 1x Cable

2.4G SP09X Micro DSM2/DSMX 3.3V-5V Satellite Receiver Specification: Item Name: 2.4G SP09X micro DSM2/DSMX Satellite receiver Frequency range: 2.403-2.479Ghz Input power: 3.3V -- 5V Response time: 22ms / 11ms Resolution: 1024/2048 Display method: LED Operating voltage: 3.3V Working current: 60MA Size: 18mm*13mm*5mm Weight: 0.9 g Antenna length: 30mm Data format: Serial port Protocol: DSM2/DSMX Distance: no ground interference (1 m from the ground ) > 300m Uses: Micro indoor/outdoor small aircraft./multi rotor Compatible Transmitters: DSM2 / DSMX series of remote control Bind procedure With F3 flight controller: Connect Flight controller to computer and open Cleanflight configurator From CLI tab type: "set spektrum_sat_bind = 9" for DSMX or "set spektrum_sat_bind = 5" for DSM2 Type "save" and after Flight controller reboot remove USB cable (=Power off the board) Wait a second and reconnect the USB cable. After cold start satellite led(Orange color LED) should start blinking and transmitter should be turned on while pressing the bind button After binding satellite led should be solid. Connect Betaflight and use receiver tab to test that satellite is working correctly. Final step is to go to CLI tab and type "set spektrum_sat_bind = 0" and then type "save". This must be done so that satellite doesn't go back to binding mode when the Flight controller is repowered again. Package Included: 1x Receiver

Features:Built-in BETAFLIGHT OSD to adjust PID, BEC, BarometerSupport PPM, SBUS, IBUS, DSM2 / DSMX Receiver (UART1)Support SAMRT AUDIO, adjust the VTX by OSD (UART3)MicroSD card blackbox, large capacity storage, Dshot support40 Channels transmitting power: 25/200/600/800mW switchable

CM410X 2.4G 4CH DSM2 DSMX Compatible Receiver With PPM Output Description: Item Name: CM410X receiver Band: 2.4GHz Channel: 4CH Modulation: DSM2,DSMX Dimensions (L xWx H): 29x15x4mm Weight: 2g Voltage Range: 3.3-15V Brown-Out Voltage: 4.0v (Always supply power above this voltage) Antenna Length Main RX: 13.5cm(2) Expected Range: 800m (tested with JR DSX9) Key Features: 4 channels with PPM Out Patent pending Model Match prevents flying a model using the wrong model memory (feature does not work with module systems) Servo Sync (feature does not work with module systems) Preset failsafe system Quick Connect Compatibility (Spectrum and JR DSM2/DSMX): DX6I,DX7,DX8, DSX7,DSX9 DSX11 Binding Procedure: I. Press bind-button connect power to receiver, please make sure radio in binding process. Receiver LED quick flash then green LED keep light it means bind is accomplished. II. Please make sure the transmitter in binding process. III. To set fail-safe throttle and control surface positions, (minimum throttle and all control surfaces set to neutral is suggested). Press and hold the bind button of transmitter (LED will illuminate) Turn on the transmitter. III. Receiver LED will change from rapid flashing to slow flashing and a few seconds later when bind is accomplished the LED of receiver will illuminate solid. Failsafe should be programmed correctly . IV. Remove binding harness from the BIND channel. Restart the receiver by cycling it power off and turn on and connect battery into BIND

DasMikro DSM2 DSMX 7CH 2.4Ghz RC Micro Receiver With PPM Output Description: Brand: DasMikro Item: 7CH 2.4Ghz RC Micro Receiver Channels: 7 channels (7 channels PPM) 1.8A Bi-Directional Brushed Motor Driver controlled by throttle channel Receiving Sensitivity: -99dBm Frequency Range: 2.4-2.48GHz Power: 3.7-5V DC Weight: 0.82g Antenna Length: 30mm Size: 21mm*13mm*2.5mm Color: Blue Signal Output: CH1-CH7 output normal PWM signal When TEST is connected to GND, CH1 output 7 channel PPM signal 1.8A Bi-Directional Brushed Motor Driver controlled by throttle channel (Channel 1) Bind: Make sure the transmitter is power off. Power on DSM2/DSMX receiver. Long press the pair button. After around 2 seconds the led changed to fast flashing, now the receiver is in pairing mode. Then turn on the transmitter and make the transmitter to pairing mode. Wait the receiver led from fast flashing to turn off, now the pairing is done. Power off the transmitter and receiver then power on again then the receiver will work. Failsafe: Turn on the transmitter and the receiver and make sure receiver is working normally. Adjust each channel to the exact position you want to have in failsafe mode. Make sure the transmitter is not in pair mode. Long press the pair button and wait the led to be fast flashing, and now the failsafe data is saved. Power off the receiver and power on again the failsafe will work. DasMikro 7CH Micro Receiver Manual, please clik here Package Included: 1 X DasMikro 7CH 2.4Ghz RC Mic

AR8000 2.4GHz 8CH High Speed Receiver Support DSMX For Spektrum DX7s DX8 DX9 Satellite Description: Item name: AR8000 8 CH Receiver Color: Black Material: Plastic Voltage: 3.5V-9.6V Channel: 8 Modulation: DSMX Frequency : 2.4GHz Dimension: 32.3 x 30 x 11.4 mm Features: Stronger anti-interference, further distances. Extra Satellite is not needed, more convenient. AR8000 DSMX 2.4 GHz 8 Channel Receiver is a high quality aftermarket parts. Used for aircraft with capable transmitters JR, Spektrum Dx7s, Dx8, Dx9, Dx18 Methods of frequency pairs: 1. the frequency plug is inserted into the receiver BIND channel, and the battery (or switched on power adjustment) is inserted into any other unused channel, where the LED lights of the internal receiver and the external receiver are flashing. 2. transmitter (for the protection of state, state control of the general throttle hit the lowest) pressing the remote control on the key (light) and open the transmitter power (preset type full channel protection function set here) 3. at this time, the internal receiver LED light from fast flashing to slow flashing, a few seconds, the receiver and external receiver LED light to the usual bright, LED lights are often bright when the completion of the frequency 4. remove the BIND interface to the code line, re power, the normal operation of each channel. The new receiver only needs to frequency one, and when the frequency is successful, the frequency line is removed when used. Package included: 1 x

Redcon CM921S 2.4G Satellite Receiver For CM921 Compatible DSM2 DSMX Spektrum JR Description: Brand Name: Redcon Item Name: CM921S Satellite Receiver Band: 2.4GHz Features: Use dual-channel wireless frequency-hopping technology Support preset full channel protection Compatible with all the DSM2/DSMX receiver,compatible with AR6210, CM921, AR9020, AR8000, AR12120 Compatible with Spektrum and JR 2.4G transmitter Binding Procedure: 1. Put the binding harness into connector location marked BIND. Next apply power to the receiver. Both receiver and Satellite LED's should illuminate. 2. To set fail-safe throttle and control surface positions, (minimum throttle and all control surfaces set to neutral is suggested). Press and hold the bind button of transmitter (LED will illuminate) Turn on the transmitter. 3. Receiver LED will change from rapid flashing to slow flashing and a few seconds later when bind is accomplished the LED of both satellite and main receiver will illuminate solid. All fail-safes should be programmed correctly now. 4. Remove binding harness from the BIND channel. Restart the receiver by cycling it power off and turn on. All channels should function properly now. You may test fail-safe by holding sticks in corner, cycle transmitter on and off. Surfaces and throttle should return to your preset fail-safe positions. General Notes: Only one bind procedure is required on a new receiver. Repetitive binding provides no extra security. Always remember to remove the bindin
